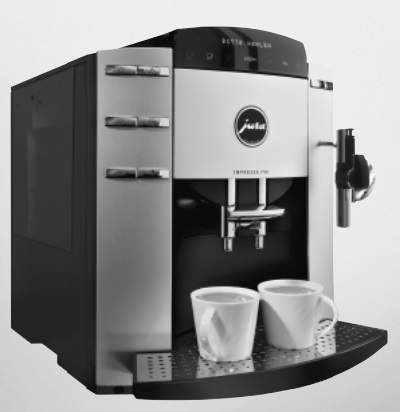

F-90 PLAT 13112 COFFEE MACHINE

Technical data
Voltage: 230V AC
Power: 1450 W
Intensity of current: 10 A
Safety check:
Energy consumption Standby: approx. 3.5 Wh
Energy consumption «Ready for
draw-off»: approx. 11.5 Wh
Pump pressure: static max. 15 bar
Water tank: 1.9 litres
Bean tank capacity: 200gr
Coffee grounds container capacity: max. 16 portions
Length of mains cable: approx. 1.1 m
Weight: 9.7 kg
Dimensions (WxHxD): 28 x 34.5 x 44.5cm
The machine complies with the following EU directives:
73/23/EWG dated 19/02/1973 “Low Voltage Directive” including
Modification Directive 93/336/EWG
89/336/EWG dated 03/05/1989 “EMC Directive” including
Modification Directive 92/31/EWG
