RY75000B || ECOLOGY UNIT

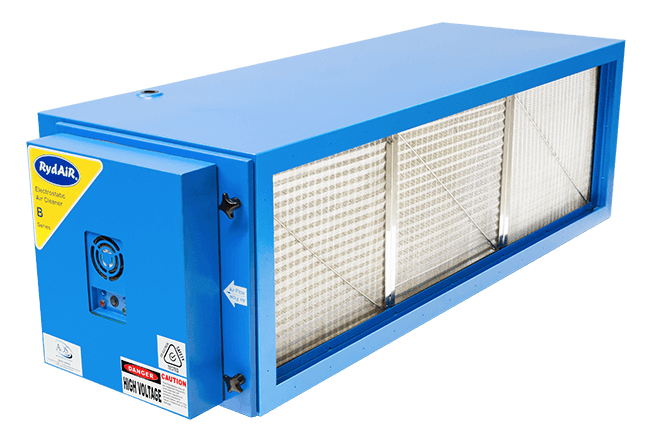

RYDAIR ELECTROSTATIC AIR CLEANER (WITHOUT BLOWER)Industrial grade Electrostatic Air Cleaners for collection of dry and wet particulates like dust, oil mist, cooking fumes and various pollutants. Typical application include commercial kitchen exhausts, Air Handling Units (AHUs), factories, workshops, CNC machine shops and many other premisesDimensions/Weight H: 540 x W: 1790 x L: 620mm / 122KgCabinet Galvanized Steel, 1.4mm / 16 GaugeFinishing Powder Coated, Dark BlueAir Volume (Rated-Max)# CFM: 4500-6100; CMH: 7500-10,500; L/s: 2100-2900Static Pressure 50 pa / 0.2”Voltage & Power 230 VAC +/-10%, 50/60Hz, 105WattsIonising Voltages High Voltage: 12KVdc, Low Voltage: 6KVdcPower Supply High Frequency solid state and self regulating designAir Flow Direction Default : Right to Left; Reversible : Left to Right
Pre-Filter Stainless Steel Wire Mesh, Washable x 3Electrostatic Cell H: 472mm, W: 550mm, L: 340mmNo of Cells / Weight 3/16.5KgNo Of Plates per Cell 59Total Collecting Area 18,21 Sq metersPost Filter (Optional) Stainless Steel Wire Mesh, Washable x 3Installation Ceiling Suspended; Wall or Frame Mounted, Multiple Units Stacked
